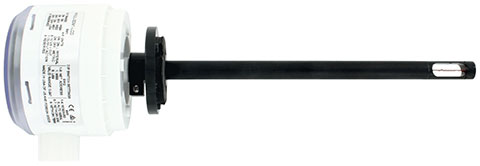

Dwyer AVUL Series Air Velocity Transmitter

The Dwyer AVUL Series air velocity transmitter offers air velocity or volumetric flow of clean air and non-combustible, compatible gases. Simultaneous current and voltage outputs on AVUL models provide universal inputs to monitoring equipment while the output range, units, and 0 to 5/10 VDC output can be configured via local DIP switches. Zero and span adjustments can be made via digital push buttons.

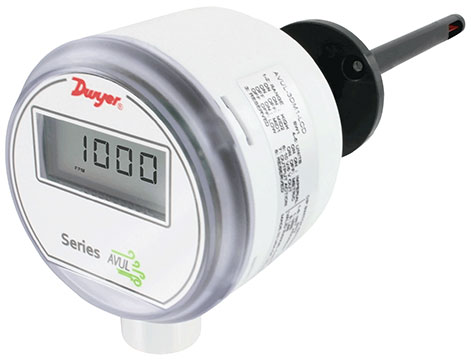

Dwyer AVUL Series air velocity transmitters are available with a standard 5% accuracy or a 3% optional upgrade. The optional integral display on the AVUL series provides a convenient way to locally monitor process values and configure the unit. Additionally, optional BACnet MS/TP or Modbus® RTU/ASCII communication protocol allows units to be daisy-chained while providing access to all of the velocity and flow data, as well as additional information such as air temperature.

Features

• Clean air & non-combustible, compatible gases
• Field-selectable ranges:
  • 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s)
• Accuracy:
  • ±(5% of reading + 0.2 m/s) standard
  • ±(3% of reading + 0.2 m/s) optional
• 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC outputs
  • BACnet or Modbus communication optional
• Digital push button zero & span adjustments
• Optional 5-digit LCD
